Bray Yacht Design and Research Ltd.
White Rock, B.C.

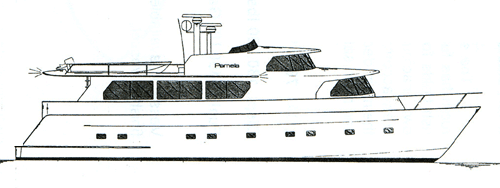

Pamela

  L.O.A. 62'-6" Draft 4'-6"
  L.W.L. 56'-0" Power 700-1400 h.p.
  Beam 20'-0" Displacement 75,000 lbs



       At 62'-6" this is the most motoryacht that can be packed into a contemporary form. Pamela makes maximum use of her beam and stability to offer 3 spacious decks of accommodation and is one of our wide body series of performance hull designs. She also has watertight bulkheads and big ship systems to name only a few to impress the most discriminating yachtsman. A mansion on the water, she is thoroughly designed for quality construction throughout. Available with various engines for speeds up to 25 knots.

       On the lower deck are four private staterooms which are arranged to be effective for chartering or as a personal yacht with crew's quarters forward. The library/computer games room may also be made into a crew's lounge. The aft two cabins are mirror images and contain his and her night tables and a large hanging locker space, each with there own private head. There is a separate head for ship's daily use. An apartment size stacking washer and dryer are housed in a cupboard of their own. The mid cabin has upper and lower berths with night table and large hanging locker space.

       The main deck has a forward dining room with seating for seven and a china cabinet as well as side counters. A large and very complete galley is directly aft with all the conveniences a gourmet chef could ask for, microwave, dishwasher, eye level ovens, trash compactor, range top with barbecue, large fridge freezer, and an eating bar that will seat six. Coats and outdoor apparel may be hung in the locker to starboard as you come through the forward doors from the deck. The spacious full width lounge area has an L shaped settee with coffee tables and lounge chairs. An entertainment center contains the TV, VCR, and stereo. Out the glass sliding doors to the aft deck, a touch of a button and the deck opens up to reveal a jacuzzi hot tub. Down the stairs leads to the swim platform for easy access to the water. The upper deck has a pilot house with settee for company and a navigation center for electronics and charting. Up the steps aft leads out to the upper deck and the upper helm station. There are two large sun lounging pads protected from the wind as well as plenty of room for dinghy storage.

       The engine room is aft of the accommodation to limit the noise intrusion into the sleeping quarters. Twin diesels and twin generators as well as a shore power system are all professionally organized.

       Modern European styling enhances the lines of this vessel providing a very pleasant profile to what might otherwise be a bulky form. Just one of a long line of quality motoryachts to come, this is a vessel that bears up under close scrutiny.

Plans include 6 sheets of drawings and a typewritten book of specifications.
Study plans $15.00
